Electric Fields |
Intro: Earth's Gravitational Field | |

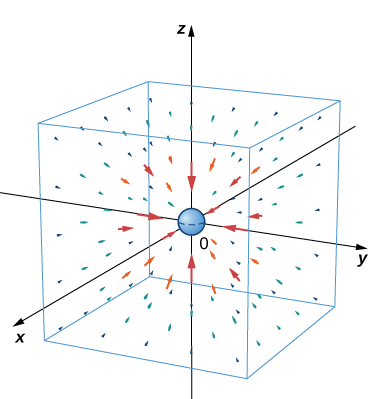

Example: gravitational field around more-or-less spherically symmetric object (Earth is pretty close). The vector gravitational field around this object is the collection of all these vector g's, all pointing radially inward towards the object.
|
|
Electric Field around a point charge | |

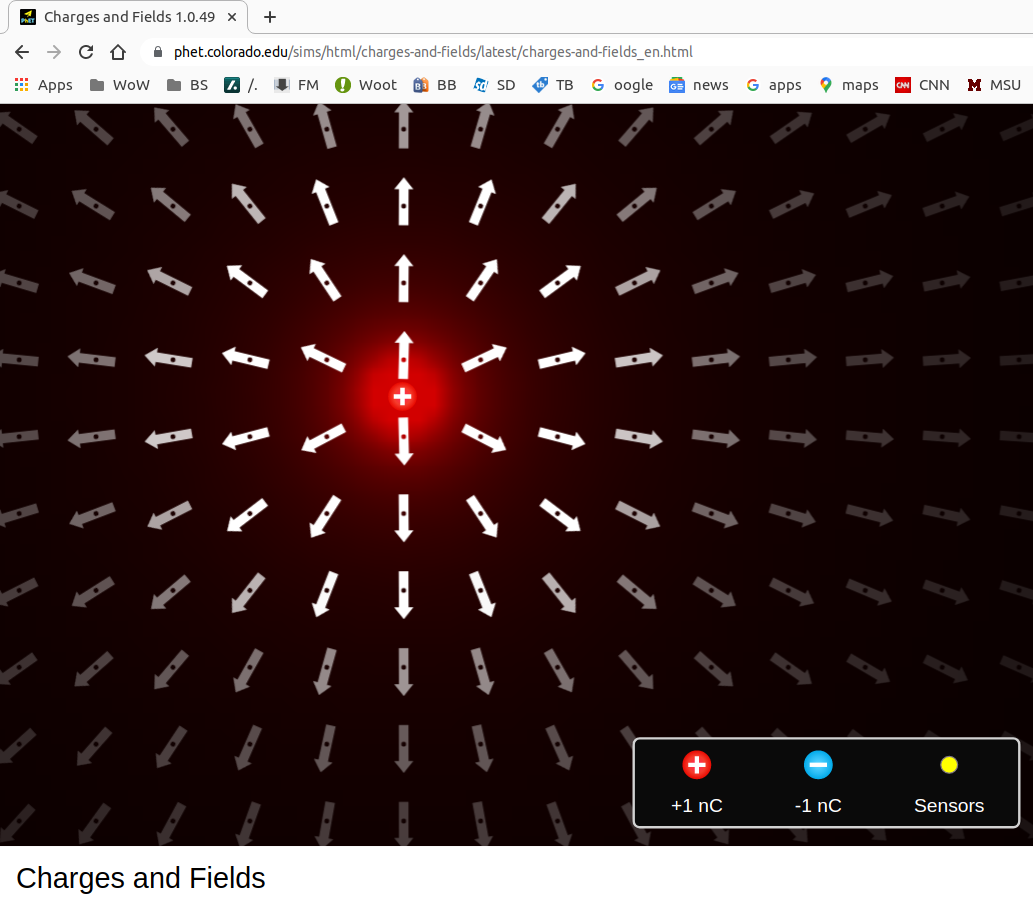

Single POSITIVE point charge: Field lines streaming radially OUTWARD
|

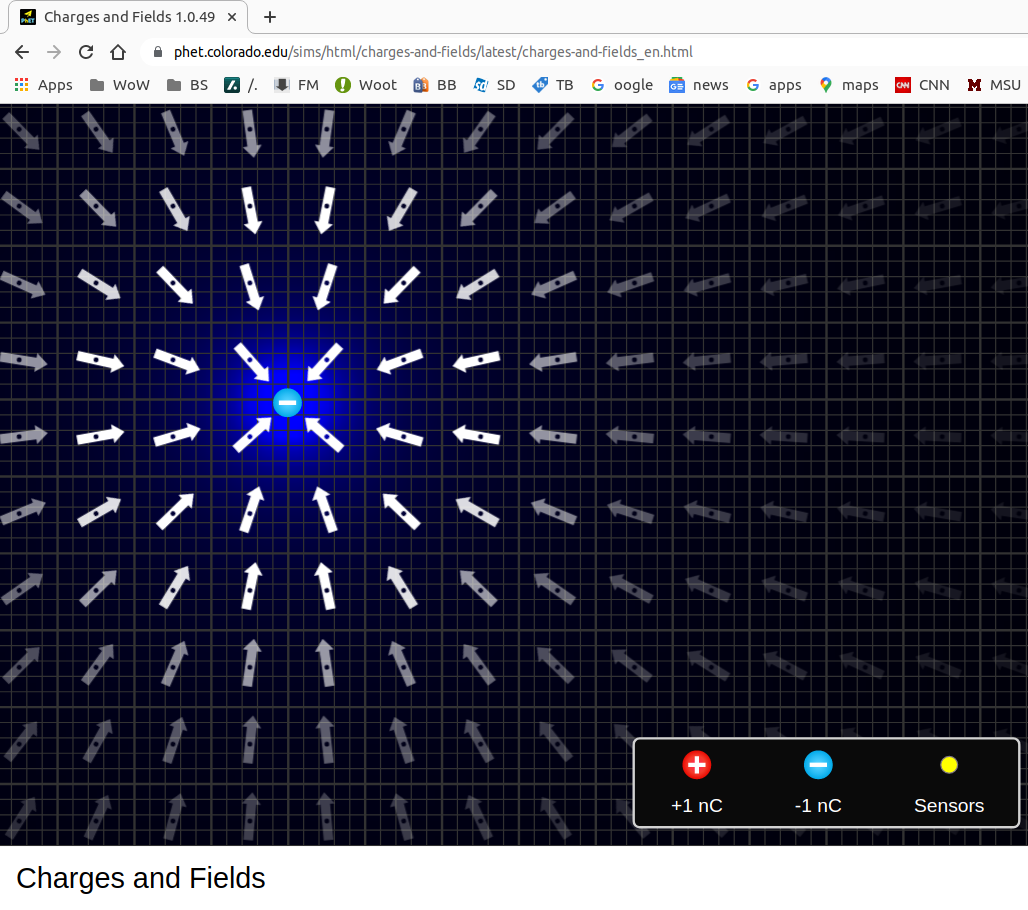

Single NEGATIVE point charge: Field lines streaming radially INWARD
|
Electric Field around a PAIR of point charges | |

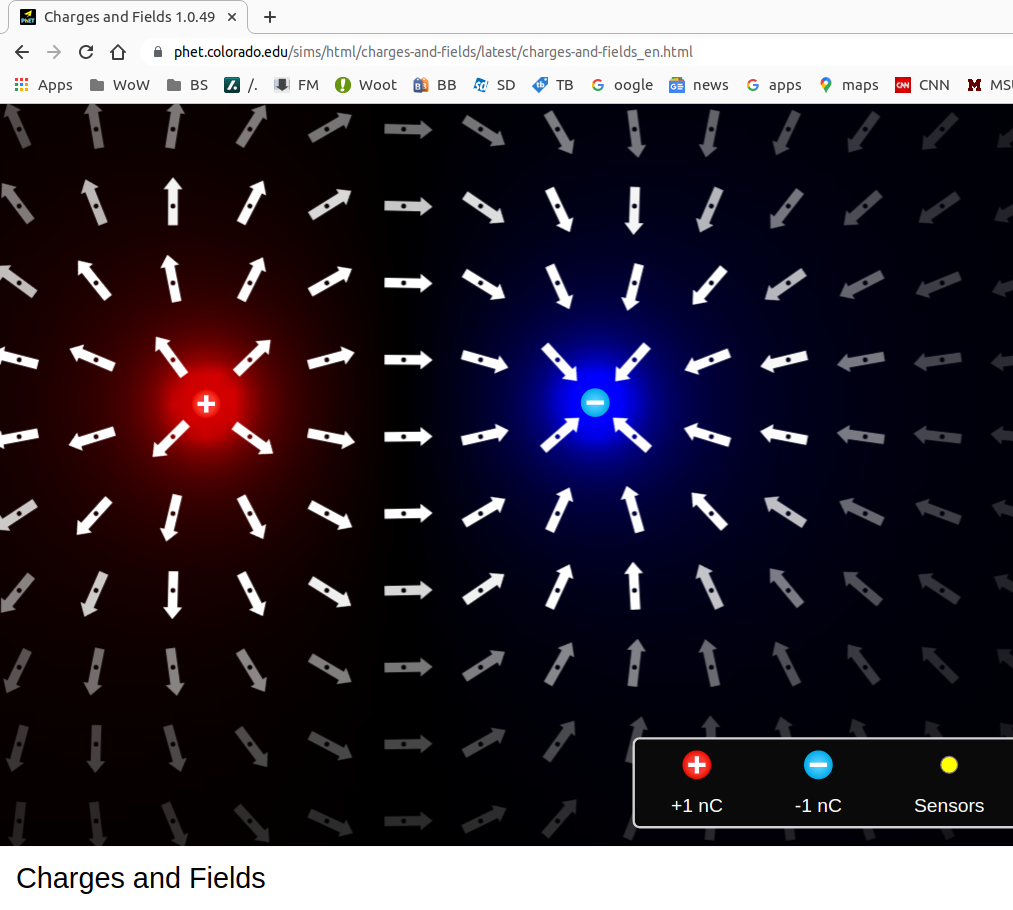

Field around an Electric Dipole
|

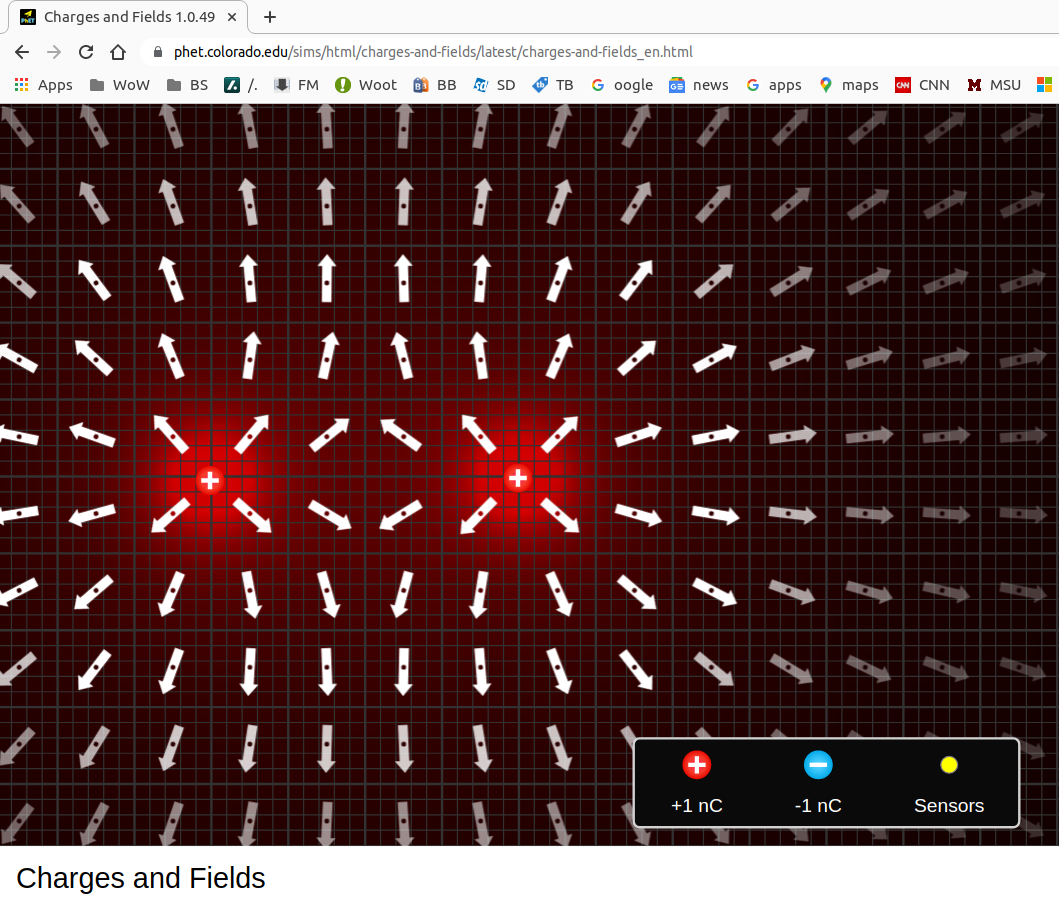

Field around a pair of + charges
|
Another 'format' (called a 'streamline' display) to show electric (and other) fields emphasizes the direction of the field but doesn't show the changing magnitude. |
|

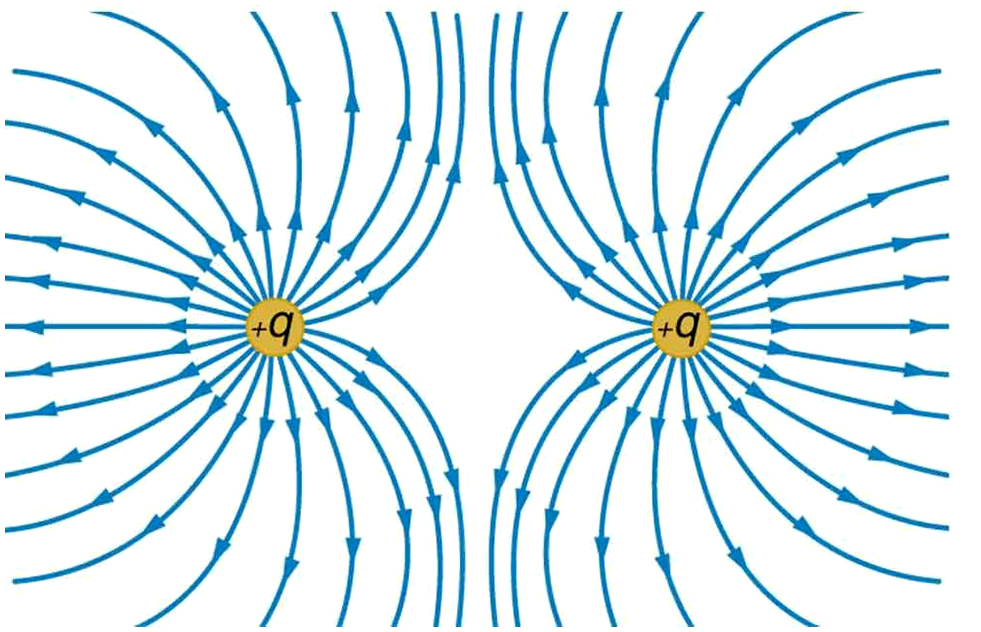

Field around TWO + charges
|

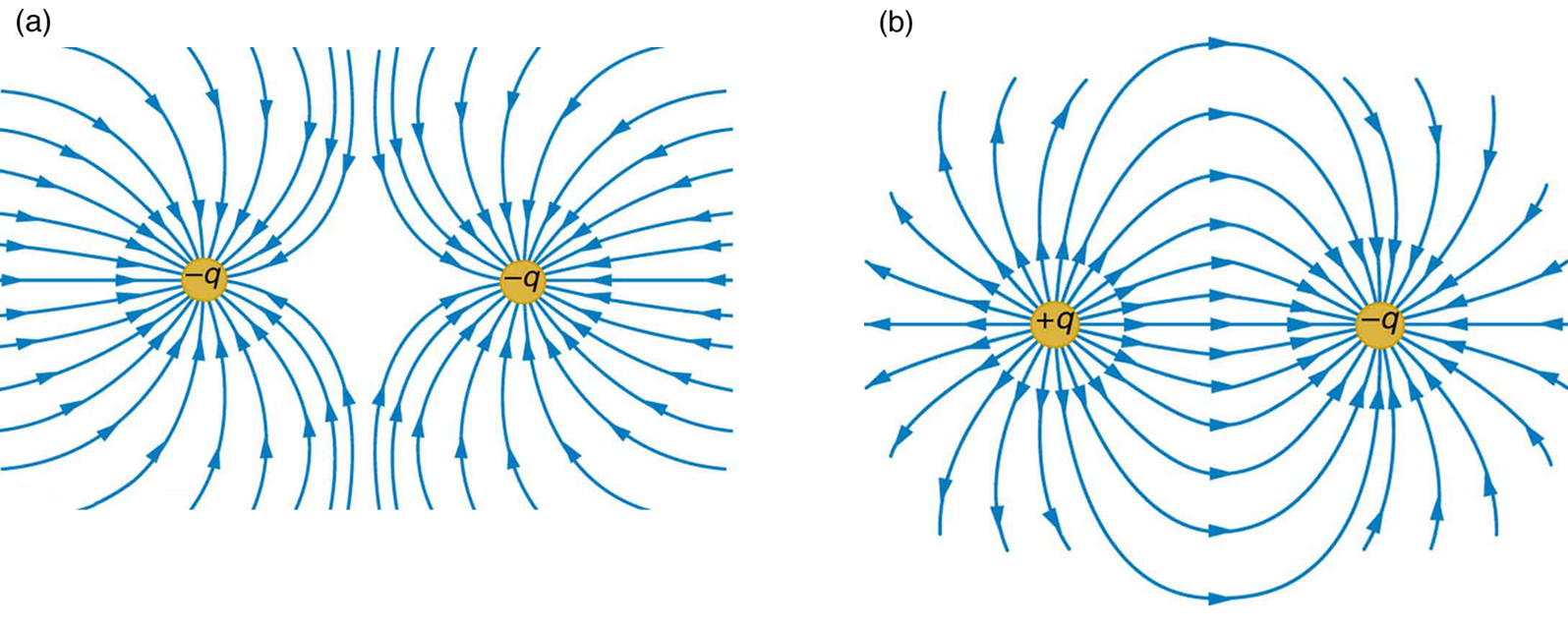

Field around TWO - charges
|
